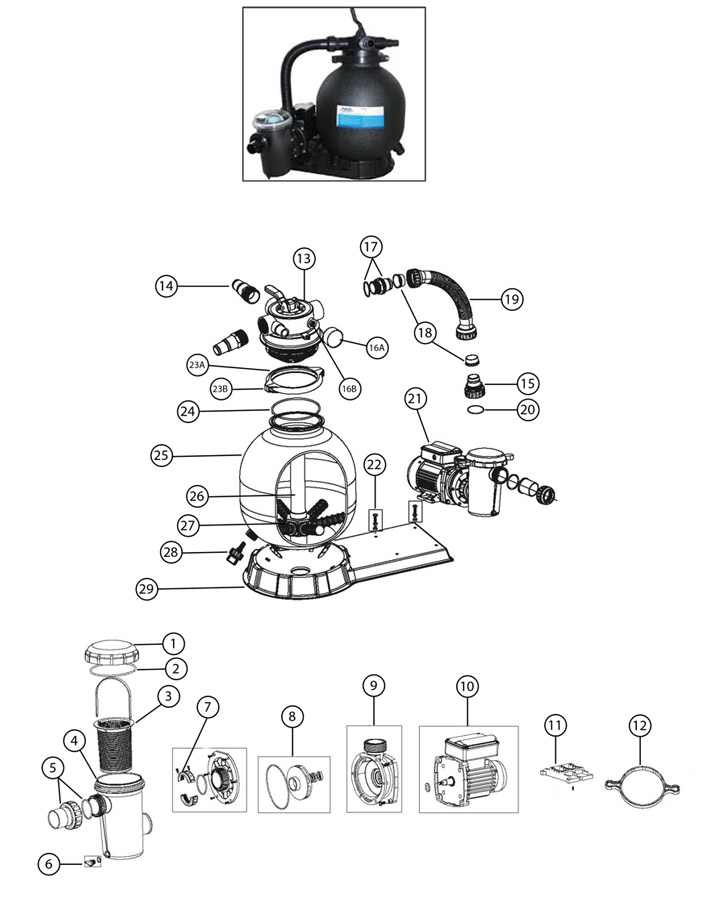

AquaPro Systems AL75 Sand Filter System

Product Description  ·  Parts  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

The face plate and o-ring are no longer included with #7.

Parts

Key Horizon # Description Qty
Key 1 Horizon # 35-247-1061 Description Trap Lid, AquaPro AL75 Price Qty RecItem View recommended items
Key 2 Horizon # 90-247-1062 Description O-Ring, AquaPro AL75, Trap Lid Price Qty RecItem View recommended items
Key 3 Horizon # 35-247-1063 Description Basket, Pump, AquaPro AL75, With Handle Price Qty RecItem
Key 4 Horizon # 35-247-1064 Description Trap Body, AquaPro AL75, Pre-filter Price Qty RecItem View recommended items
Key 5 Horizon # 89-247-1065 Description Pump Union Only, AquaPro AL75, Suction 1-1/2" Price Qty RecItem
Key 6 Horizon # 35-247-1066 Description Drain Plug, AquaPro AL75 Price Qty RecItem View recommended items
Key 7 Horizon # 35-247-1067 Description Inter-Locking Kit, AquaPro AL75 Price Qty RecItem
Key 8 Horizon # 35-247-1010 Description Impeller, AquaPro AL75 Price Qty RecItem
Key 8 Horizon # 35-247-1068 Description Impeller Kit, AquaPro AL75 Price Qty RecItem View recommended items
Key 9 Horizon # 35-247-1069 Description Seal Plate, AquaPro AL75 Price Qty RecItem View recommended items
Key 10 Horizon # 35-247-1070 Description Motor, AquaPro AL75, .075 Horsepower, 115v Price Qty RecItem
Key 11 Horizon # 35-247-1071 Description Pump Base, AquaPro AL75 Price Qty RecItem
Key 12 Horizon # 99-247-1072 Description Tool, AquaPro AL75, Trap Lid Wrench Price Qty RecItem
Key 13 Horizon # 26-247-1073 Description Multiport Valve, AquaPro AL75, 4-Way Price Qty RecItem View recommended items
Key 14 Horizon # 31-247-1074 Description Hose Barb Adapter, AquaPro AL75, 32mm to 38mm, W/ O-Ring Price Qty RecItem
Key 15 Horizon # 89-247-1075 Description Union Set, AquaPro AL75, 1-1/2" Valve Inlet, W/ O-Ring Price Qty RecItem
Key 16A Horizon # 31-247-1076 Description Pressure Gauge, AquaPro AL75, W/ O-Ring, 28psi, Plastic Price Qty RecItem
Key 16B Horizon # 31-247-1176 Description Pressure Gauge Connecter, AquaPro AL75 Price Qty RecItem
Key 17 Horizon # 31-247-1077 Description Hose Adapter, AquaPro AL75, Pump Discharge to Inlet Union Price Qty RecItem
Key 18 Horizon # 31-247-1078 Description Rubber Hose Sleeve, AquaPro AL75 Price Qty RecItem
Key 19 Horizon # 37-247-1079 Description Hose, AquaPro AL75, Pump to Filter, Plastic, w/ Nuts Price Qty RecItem
Key 20 Horizon # 90-247-1080 Description O-Ring, AquaPro AL75, Pump Union Price Qty RecItem
Key 21 Horizon # 34-247-1081 Description Pump, AquaPro AL75, 0.75 Horsepower, 115v Price Qty RecItem View recommended items
Key 21 Horizon # 34-247-1083 Description Pump, AquaPro AL75, 1.0 Horsepower, 115V Price Qty RecItem View recommended items
Key 22 Horizon # 97-247-1082 Description Bolt Kit, AquaPro AL75, Pump to Base Mounting Price Qty RecItem
Key 23A Horizon # 31-247-1083 Description Clamp Ring Assembly, AquaPro AL75 Price Qty RecItem
Key 23B Horizon # 97-247-1083 Description Screw and Nut, AquaPro AL75, M6x50, For Clamp Ring Price Qty RecItem
Key 24 Horizon # 90-247-1084 Description O-Ring, AquaPro AL75, For Clamp Ring Price Qty RecItem
Key 25 Horizon # 31-247-1085 Description Filter Tank, AquaPro AL75, 15" Price Qty RecItem
Key 26 Horizon # 31-247-1086 Description Center Pipe, AquaPro AL75, 15-3/4" Long Price Qty RecItem
Key 27 Horizon # 31-247-1087 Description Laterals, AquaPro AL75, 4-1/2" Long Price Qty RecItem
Key 28 Horizon # 31-247-1088 Description Drain Plug Assembly, AquaPro AL75 Price Qty RecItem
Key 29 Horizon # 31-247-1089 Description Pump and Filter Base, AquaPro AL75 Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # 31-247-1018 Description Soft Side Pool Adapter, AquaPro AL75, 40mm, w/ O-Ring Price Qty RecItem
Key Horizon # 31-247-1090 Description Neck Fitting Funnel, AquaPro AL75 Price Qty RecItem
Key Horizon # 60-247-1091 Description Capacitor, AquaPro AL75 Price Qty RecItem
Key Horizon # 27-247-1073 Description Decal, AquaPro AL75 Multiport Valve Price Qty RecItem
Key Horizon # 35-247-1012 Description Shaft Seal, AquaPro AL75 Price Qty RecItem View recommended items
