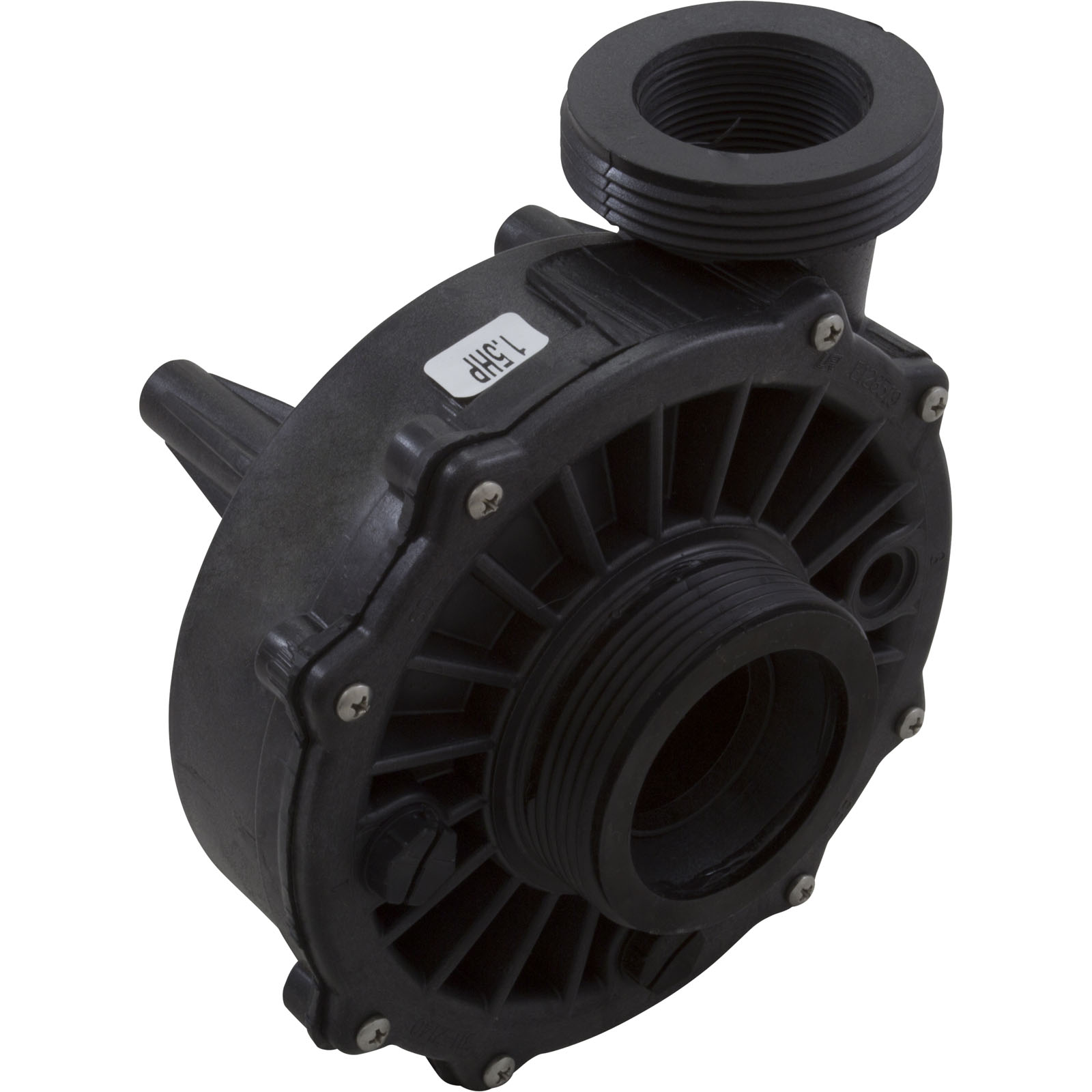

Wet End, WW Hi-Flo 1.5hp 2"mbt 48fr

Wet End, WW Hi-Flo 1.5hp 2"mbt 48fr 34-270-1400

Multiple Views:

main 1-reverse 2-front 3-back 4-top 5-intake 6-threads

Horizon # 34-270-1400

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.


Detailed Product Info

Back To Top ^
Waterway Hi-Flo Wet End

Side discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway Hi-Flo pump. This wet end is used with a 1.5hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
Horizon #Description Exploded Diagram
Horizon # 34-270-W003 Product Waterway HiFlo & HiFlo II Series Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 34-270-1399 Product Wet End, WW Hi-Flo 1.0hp 2"mbt 48fr Price Qty List Order
Horizon # _310-1120SD Product Side Discharge Spa Wet End 3/4Hp Impeller Price Qty List Order
Horizon # 34-270-1400 Product Wet End, WW Hi-Flo 1.5hp 2"mbt 48fr Price Qty List Order
Horizon # 34-270-1401 Product Wet End, WW Hi-Flo 2.0hp 2"mbt 48fr Price Qty List Order
Horizon # 34-270-1402 Product Wet End, WW Hi-Flo 3.0hp 2"mbt 48fr Price Qty List Order
Horizon # 34-270-1404 Product Wet End, WW Hi-Flo 4.0hp 2"mbt 48fr Price Qty List Order
Search Using These Specs Partsology ©
Manufacturer Waterway
Pump Model Hi-Flo Old Style
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.5hp
Volute Fastening Type 8 Screws
