Waterway Center Discharge Pool Pump (4 Screw Faceplace)

Product Description · Parts · 1-Speed Motors · 2-Speed Motors · Not Pictured

Product Description

The Waterway center discharge wet end has been discontinued and replaced with the E-Series Center Discharge wet end by the manufacturer. Please be sure to properly identify which wet end you have as the parts are not interchangeable. The easiest way to identify which wet end you have is to count the number of screws on the faceplate. The old center discharge pump had a 4-screw faceplate and the new E-Series has a 6-screw faceplate. If you need parts for the old center discharge wet ends, you will need to replace the whole wet end with a new E-Series Center Discharge wet end.

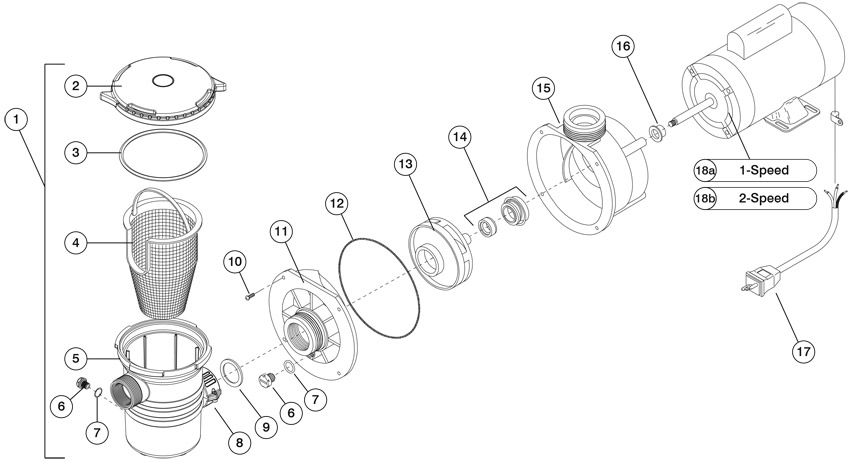

Parts

Key	Horizon #	Description		Qty
Key 1	Horizon # 35-270-1306	Description Trap Assy, WW Ctr Disch/Spa-Flo, 1-1/2"Union x 1-1/2"mbt/fpt	Price	Qty	RecItem
Key 2	Horizon # Discontinued	Description Trap Lid, Waterway Hi-Flo/Mustang/Workhorse/Workman	Price	Qty	RecItem
Key 3	Horizon # 90-423-5436	Description O-Ring, Buna-N, 5-7/8" ID, 1/4" Cross Section, Generic	Price	Qty	RecItem
Key 4	Horizon # Discontinued	Description Basket, Pump, OEM Waterway 6" Trap	Price	Qty	RecItem
Key 5	Horizon # 35-270-1510	Description Trap Body, Waterway, 1-1/2"mbt/1-1/2"fpt x 1-1/2" flange	Price	Qty	RecItem
Key 6	Horizon # 35-270-1480	Description Drain Plug, Waterway	Price	Qty	RecItem
Key 7	Horizon # 35-270-1705	Description O-Ring, Waterway, Drain Plug/Valve Stem	Price	Qty	RecItem
Key 7	Horizon # 90-423-7112	Description O-Ring, 1/2" ID, 3/32" Cross Section, Generic	Price	Qty	RecItem
Key 8	Horizon # 89-238-1015	Description Split Nut, 1-1/2" Buttress Thread, Heater Union	Price	Qty	RecItem
Key 9	Horizon # 90-423-1001	Description Gasket, 1-1/2" Heater Union, Flat	Price	Qty	RecItem
Key 10	Horizon # 35-270-1560	Description Screw, Waterway E-Series/Viper/Workman/EX2, 8-32 x 5/8"	Price	Qty	RecItem
Key 11	Horizon # Discontinued	Description Faceplate, Waterway Center Discharge, 1-1/2"	Price	Qty	RecItem
Key 12	Horizon # 90-423-5252	Description O-Ring, 5-1/4" ID, 1/8" Cross Section, Generic	Price	Qty	RecItem
Key 13	Horizon # Discontinued	Description Impeller, Waterway Center Discharge, 0.5hp	Price	Qty	RecItem
Key 13	Horizon # Discontinued	Description Impeller, Waterway Center Discharge, 0.75 Horsepower	Price	Qty	RecItem
Key 13	Horizon # 35-270-1507	Description Impeller, Waterway Center Discharge, 1.0 Horsepower	Price	Qty	RecItem
Key 13	Horizon # Discontinued	Description Impeller, Waterway Center Discharge, 1.5 Horsepower	Price	Qty	RecItem
Key 13	Horizon # Discontinued	Description Impeller, Waterway Center Discharge, 2.0 Horsepower	Price	Qty	RecItem
Key 14	Horizon # 35-423-1048	Description Shaft Seal, PS-3865, 5/8" Shaft, Viton PS-1000	Price	Qty	RecItem
Key 14	Horizon # 35-423-1060	Description Shaft Seal, 1000, 5/8" Shaft, Buna	Price	Qty	RecItem
Key 14	Horizon # 35-423-1061	Description Shaft Seal, PS-1905, 5/8" Shaft, Silicon Carbide PS-1000	Price	Qty	RecItem
Key 14	Horizon # 35-423-1096	Description Shaft Seal, PS-961, 5/8" Shaft, Buna, Carbon Face	Price	Qty	RecItem
Key 14	Horizon # 35-426-1060US	Description Shaft Seal, 1000, 5/8" Shaft, Buna, US Seal	Price	Qty	RecItem
Key 15	Horizon # Discontinued	Description Volute, Waterway Center Discharge	Price	Qty	RecItem
Key 16	Horizon # 35-270-1475	Description Water Slinger, Waterway Hi-Flo/Mustang/Executive	Price	Qty	RecItem
Key 17	Horizon # 35-270-2072	Description Cord, Waterway HiFlo/Center Discharge, 3 foot, Twist Lock	Price	Qty	RecItem
Key 17	Horizon # 35-270-2074	Description Cord, 12/3, NEMA, 3 foot	Price	Qty	RecItem

1-Speed Motors

Key	Horizon #	Description		Qty
Key 18a	Horizon # 35-126-1005	Description Motor, Century, 0.75 Horsepower, 115v, 1 Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, Century/WW, 0.75hp, 115v, 1-Speed, 48YFr, 60Hz	Price	Qty	RecItem
Key 18a	Horizon # 35-126-1010	Description Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, Century/WW, 1.0SPL, 115v, 1-Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # 35-126-1020	Description Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, Century/WW, 1.5hp, 115v/230v, 1-Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # 35-126-1025	Description Motor, Century, 2.0 Horsepower, 115v/230v, 1 Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, Century/WW, 2.0hp, 115v/230v, 1-Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, US Motor/WW, 0.75 SPL, 115v, 1-Speed, 48 Frame	Price	Qty	RecItem
Key 18a	Horizon # Discontinued	Description Motor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 Frame	Price	Qty	RecItem

2-Speed Motors

Key	Horizon #	Description		Qty
Key 18b	Horizon # 35-126-1105	Description Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, Century/WW, 0.75hp, 115v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # 35-126-1110	Description Motor, Century, 1.0 Horsepower, 115v, 2 Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, Century/WW, 1.0hp, 115v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # 35-126-1115	Description Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, Century/WW, 1.5hp, 115v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # 35-126-1116	Description Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, Century/WW, 1.5hp, 230v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # 35-126-1120	Description Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, Century/WW, 2.0hp, 230v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, US Motor/WW, 1.0SPL, 115v, 2-Speed, 48 Frame	Price	Qty	RecItem
Key 18b	Horizon # Discontinued	Description Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame	Price	Qty	RecItem

Not Pictured

Key	Horizon #	Description			Qty
Key	Horizon # 90-249-3051	Description Pump Rebuild Kit 51, Waterway Center Discharge Pump		Price	Qty	RecItem
Key	Horizon # 90-538-2051	Description Pump O-Ring Kit, Generic Waterway Center Discharge, W/Seal		Price	Qty	RecItem
