Jacuzzi J-HN250C/400C LoNox Natural Gas Heater

Product Description

The Component Bag is not shown on this diagram. It contains serveral individual parts for these heaters. The parts included in the Component Bag are ONLY available as part of the Component Bag with the exeption of: 677482 - 50 MM Oring

The Component Bag contains the following items:

1 - 50 MM Oring - 677482
2 - 50 MM Lock Nut - 677484
2 -50 MM Union - 677485

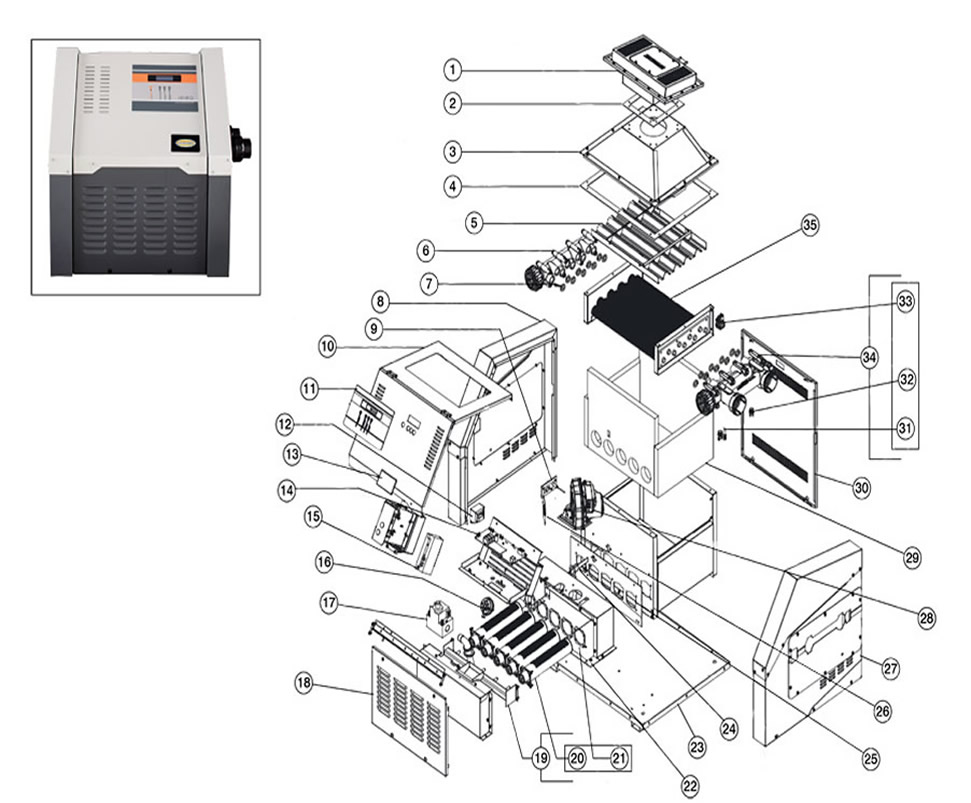

Parts

Key	Horizon #	Description		Qty
Key 1	Horizon # Discontinued	Description OUTDOOR FLUE ASSEMBLY	Price	Qty	RecItem
Key 2	Horizon # Discontinued	Description FLUE GASKET J-HN	Price	Qty	RecItem
Key 3	Horizon # Discontinued	Description FLUE COLLECTOR ASSEMBLY	Price	Qty	RecItem
Key 3	Horizon # Discontinued	Description FLUE COLLECTOR ASSEMBLY	Price	Qty	RecItem
Key 3	Horizon # Discontinued	Description FLUE ASSEMBLY	Price	Qty	RecItem
Key 3	Horizon # Discontinued	Description FLUE ASSEMBLY	Price	Qty	RecItem
Key 4	Horizon # Discontinued	Description HOOD GASKET	Price	Qty	RecItem
Key 4	Horizon # Discontinued	Description HOOD GASKET	Price	Qty	RecItem
Key 5	Horizon # Discontinued	Description HEAT EXCHANGER BAFFLE KIT	Price	Qty	RecItem
Key 5	Horizon # Discontinued	Description HEAT EXCHANGER BAFFLE KIT	Price	Qty	RecItem
Key 6	Horizon # Discontinued	Description JCZ RETURN HEADER J-HN SERIES	Price	Qty	RecItem
Key 7	Horizon # 677545	Description JCZ GASKT TUBE SEALS 9 PK J-HN	Price	Qty	RecItem
Key 8	Horizon # Discontinued	Description LHS OUTER PANEL ASSEMBLY	Price	Qty	RecItem
Key 9	Horizon # 677643	Description FLAME ROD WITH SIGHT GLASS KIT	Price	Qty	RecItem
Key 10	Horizon # 677644	Description HINGED PANEL ASSEMBLY	Price	Qty	RecItem
Key 10	Horizon # Discontinued	Description HINGED PANEL ASSEMBLY	Price	Qty	RecItem
Key 11	Horizon # Discontinued	Description HEATER FACIA LABEL	Price	Qty	RecItem
Key 12	Horizon # 677647	Description Transformer, Jacuzzi, HN250C/400C	Price	Qty	RecItem
Key 13	Horizon # 677648	Description LENS BADGE	Price	Qty	RecItem
Key 14	Horizon # 677528	Description PCB, Jacuuzi, HN250C/400C	Price	Qty	RecItem
Key 15	Horizon # 677540	Description Ignition Module, Jacuzzi, HN250C/400C	Price	Qty	RecItem
Key 16	Horizon # Discontinued	Description JCZ AIR PRESSURE SWITCH J-HN	Price	Qty	RecItem
Key 17	Horizon # Discontinued	Description JCZ GAS VALVE J-HN SERIES	Price	Qty	RecItem
Key 18	Horizon # Discontinued	Description FRONT EXTERNAL PANEL	Price	Qty	RecItem
Key 18	Horizon # Discontinued	Description FRONT EXTERNAL PANEL	Price	Qty	RecItem
Key 19	Horizon # Discontinued	Description BURNER RAIL ASSEMBLY	Price	Qty	RecItem
Key 19	Horizon # Discontinued	Description BURNER RAIL ASSEMBLY	Price	Qty	RecItem
Key 20	Horizon # Discontinued	Description LOW NOX BURNER TUBE	Price	Qty	RecItem
Key 21	Horizon # Discontinued	Description GASKET FOR SINGLE BURNER	Price	Qty	RecItem
Key 22	Horizon # Discontinued	Description FAN BOX GASKET	Price	Qty	RecItem
Key 22	Horizon # Discontinued	Description FAN BOX GASKET	Price	Qty	RecItem
Key 23	Horizon # Discontinued	Description BASE	Price	Qty	RecItem
Key 23	Horizon # Discontinued	Description BASE	Price	Qty	RecItem
Key 24	Horizon # 677568	Description Hot Surface Ignitor, Jacuzzi, HN250C/400C	Price	Qty	RecItem
Key 25	Horizon # Discontinued	Description BURNER GASKET	Price	Qty	RecItem
Key 25	Horizon # Discontinued	Description BURNER GASKET	Price	Qty	RecItem
Key 26	Horizon # Discontinued	Description BAFFLE PLATE NAT	Price	Qty	RecItem
Key 26	Horizon # Discontinued	Description BAFFLE PLATE NAT	Price	Qty	RecItem
Key 26	Horizon # Discontinued	Description BAFFLE PLATE LPG	Price	Qty	RecItem
Key 27	Horizon # Discontinued	Description RHS OUTER PANEL ASSEMBLY	Price	Qty	RecItem
Key 28	Horizon # 677669	Description COMBUSTION FAN ASSEMBLY	Price	Qty	RecItem
Key 29	Horizon # Discontinued	Description COMBUSTION INSULATION KIT	Price	Qty	RecItem
Key 29	Horizon # Discontinued	Description COMBUSTION INSULATION KIT	Price	Qty	RecItem
Key 30	Horizon # Discontinued	Description EXTERNAL BACK COVER	Price	Qty	RecItem
Key 30	Horizon # Discontinued	Description EXTERNAL BACK COVER	Price	Qty	RecItem
Key 31	Horizon # Discontinued	Description JCZ THERMOSTAT WELL J-HN	Price	Qty	RecItem
Key 32	Horizon # 677675	Description Hi-Limit, Jacuzzi, HN250C/400C, 130F	Price	Qty	RecItem
Key 33	Horizon # 677537	Description JCZ PRESSURE SWITCH J-HN	Price	Qty	RecItem
Key 34	Horizon # 677547	Description JCZ IN/OUT HEADER J-HN SERIES	Price	Qty	RecItem
Key 35	Horizon # Discontinued	Description HEAT EXCHANGER	Price	Qty	RecItem
Key 35	Horizon # Discontinued	Description HEAT EXCHANGER	Price	Qty	RecItem
Key	Horizon # Discontinued	Description WIRING LOOM	Price	Qty	RecItem
Key	Horizon # Discontinued	Description POWER CABLE	Price	Qty	RecItem
Key	Horizon # Discontinued	Description JCZ IGNITION SENSOR LEAD J-HN	Price	Qty	RecItem
Key	Horizon # 677533	Description Sensor, Jacuzzi, HN250C/400C	Price	Qty	RecItem
Key	Horizon # Discontinued	Description J-HN250C/J-HN400C Components Bag	Price	Qty	RecItem
Key	Horizon # 677767	Description JCZ J-HN250C AIR COMB BLOWER	Price	Qty	RecItem
Key	Horizon # Discontinued	Description JCZ TRANSFORMER HTR	Price	Qty	RecItem
