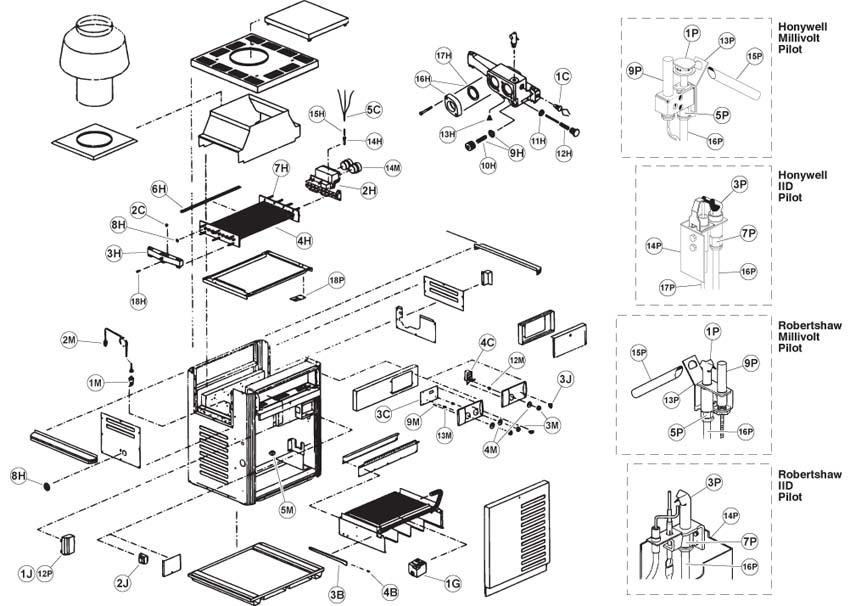

Raypak R185, R265, R335, R405 (11-01-93 thru 11-01-98)

Product Description  ·  Burner Tray  ·  Controls  ·  Gas Valve  ·  Heat Exchanger  ·  Control Box  ·  Miscellaneous Components  ·  Pilot
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Key #4b - For altitudes over 2,000 feet above sea level, consult the factory

Burner Tray

Key Horizon # Description Qty
Key 3b Horizon # 47-197-3200 Description SRV Burner Kit, Raypak, 10 Pack Price Qty RecItem
Key 4b Horizon # Discontinued Description Burner Orifice,Raypak Gemini/Versa/RP2100/Cal III,#51,NG,SL Price Qty RecItem
Key 4b Horizon # 47-197-1470 Description Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea Price Qty RecItem View recommended items

Controls

Key Horizon # Description Qty
Key 1c Horizon # 47-197-1444 Description T-Stat Auto Reset 13, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 2c Horizon # 47-197-1446 Description T-Stat Auto Reset 14, Raypak 105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 3c Horizon # Discontinued Description PCB, Raypak R185, IID Price Qty RecItem View recommended items
Key 4c Horizon # 47-197-1024 Description Thermostat,Raypak ELS/53/105A/105B/153/155A/183A/185B/RP2100 Price Qty RecItem View recommended items
Key 5c Horizon # 47-197-1650 Description Sensor, Temperature, Raypak R185 Price Qty RecItem View recommended items
Key Horizon # 47-197-1652 Description Fuse Board, Raypak R185 Price Qty RecItem View recommended items

Gas Valve

Key Horizon # Description Qty
Key 1g Horizon # 47-197-1210 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, Nat., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1212 Description Gas Valve, Raypak 53/53A/55A/105A/105B/151/153, LP., MV Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1278 Description Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID Price Qty RecItem View recommended items
Key 1g Horizon # 47-197-1368 Description Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID Price Qty RecItem View recommended items

Heat Exchanger

Key Horizon # Description Qty
Key 2h Horizon # 47-197-1654 Description Header, Inlet/Outlet,Raypak 185-405/185B/C-405B/C,Cast Iron Price Qty RecItem View recommended items
Key 2h Horizon # Discontinued Description Inlet/Outlet Header, Raypak 185A/R185, Bronze Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1574 Description Return Header, Raypak 183A, Cast Iron Price Qty RecItem View recommended items
Key 3h Horizon # 47-197-1658 Description Return Header, Raypak 183A, Bronze Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1660 Description Tube Bundle, Raypak R185 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1662 Description Tube Bundle, Raypak R265 Price Qty RecItem View recommended items
Key 4h Horizon # 47-197-1664 Description Tube Bundle, Raypak R335 Price Qty RecItem View recommended items
Key 4h Horizon # Discontinued Description Tube Bundle, Raypak R405 Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1670 Description Baffle, Raypak R185/R185A/R185B Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1672 Description Baffle, Raypak R265/R265A/R265B, Before 6/2013 Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1674 Description Baffle, Raypak R335/R335A/R335B Price Qty RecItem View recommended items
Key 6h Horizon # 47-197-1676 Description Baffle, Raypak R405/R405A/R405B Price Qty RecItem View recommended items
Key 7h Horizon # Discontinued Description Bolt Kit, Raypak 183A/185A/R185/185/R185A Heat Exchanger Price Qty RecItem
Key 8h Horizon # 47-197-1414 Description Gasket, Raypak 105A/105B/183A,Heat Xchg,3/4"ID,1-1/8"OD,qty9 Price Qty RecItem View recommended items
Key 9h Horizon # 47-197-1416 Description Unitherm Governor, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 10h Horizon # 47-197-1418 Description Unitherm Governor Spring, Raypak 105A/105B/155A/185A/R185 Price Qty RecItem View recommended items
Key 11h Horizon # 47-197-1420 Description Bypass Valve, Raypak, Versa, Gemini, RP2100, Low Nox Price Qty RecItem
Key 11h Horizon # 47-197-1421 Description Bypass Valve Kit, Raypak 206A - 408A, Plastic Price Qty RecItem
Key 12h Horizon # Discontinued Description Bypass Spring, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-1615 Description Bypass Spring, Raypak 185A/R185/207A/206A Price Qty RecItem View recommended items
Key 12h Horizon # 47-197-3422 Description Bypass Spring Kit, Raypak 105A/105B/155A/185A/R185/207A/206A Price Qty RecItem
Key 13h Horizon # 47-197-1232 Description Drain Valve, Raypak 53/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 14h Horizon # 47-197-1424 Description Sensor Well, Raypak 105A/105B/155A/185A/R185/185/207A Price Qty RecItem View recommended items
Key 15h Horizon # Discontinued Description Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A Price Qty RecItem View recommended items
Key 15h Horizon # 47-197-3218 Description Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B Price Qty RecItem
Key 16h Horizon # 47-197-1430 Description Flange Kit, Raypak 105A/105B/155A/185A/R185/207A, In/Out Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1434 Description Gasket, Raypak 105A/105B/155A/185A,Flange,1-5/8"ID,2-5/8"OD Price Qty RecItem View recommended items
Key 17h Horizon # 47-197-1436 Description Gasket, Raypak 105A/105B/155A/185, 2-1/8"ID, 2-3/4"OD, qty 2 Price Qty RecItem View recommended items
Key 18h Horizon # 47-197-1680 Description Header Drain Plug, Raypak R185/185/207A/206A/R185A/R185B Price Qty RecItem View recommended items
Key Horizon # 47-197-2370 Description Heat Exchanger, Assembly, Raypak, Model R185, Cast Iron Price Qty RecItem View recommended items
Key Horizon # 47-197-2372 Description Heat Exchanger, Assembly, Raypak, Model R265, Cast Iron Price Qty RecItem View recommended items
Key Horizon # 47-197-2374 Description Heat Exchanger, Assembly, Raypak, Model R335, Cast Iron Price Qty RecItem View recommended items
Key Horizon # 47-197-2376 Description Heat Exchanger, Assembly, Raypak, Model R405, Cast Iron Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Assembly, Raypak, Model R185, Brass Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Assembly, Raypak, Model R265, Brass Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Assembly, Raypak, Model R335, Brass Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Heat Exchanger, Assembly, Raypak, Model R405, Brass Price Qty RecItem View recommended items

Control Box

Key Horizon # Description Qty
Key 1j Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 1j Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 2j Horizon # 47-197-1768 Description Transformer, Raypak 55A/R185/185/207A/206A/R185A, 115v/230v Price Qty RecItem View recommended items
Key 3j Horizon # 47-197-1464 Description Rocker Switch, Raypak 105B/R185/185/R185A/R185B Price Qty RecItem View recommended items

Miscellaneous Components

Key Horizon # Description Qty
Key 1m Horizon # 47-319-1201 Description Pressure Switch 3925,25A, Tecmark, Universal, SPNO, w/Brass Price Qty RecItem View recommended items
Key 2m Horizon # 47-197-1682 Description Pressure Switch Tube, Raypak R185 Price Qty RecItem View recommended items
Key 3m Horizon # 47-197-1684 Description Thermostat Knob, Raypak R185/185/R185A/R185B, Black Price Qty RecItem View recommended items
Key 4m Horizon # 47-197-1032 Description Knob Stop, Raypak ELS/53A/55A/105A/105B/153/155A/183A/185A Price Qty RecItem View recommended items
Key 5m Horizon # 47-197-1384 Description Thermal Cut-Off Fuse Kit, Raypak 55A/105A/155A, 130 degree Price Qty RecItem View recommended items
Key 9m Horizon # Discontinued Description Indicator Light Kit, Raypak R185 Price Qty RecItem
Key 12m Horizon # Discontinued Description Shaft Extension, Raypak R185/185/206A/R185A/R185B Price Qty RecItem
Key 13m Horizon # Discontinued Description Shaft Control Knob, Raypak R185 Price Qty RecItem View recommended items
Key 14m Horizon # 47-197-1692 Description Adapter Kit, Raypak R185/R265/R335/R405 Price Qty RecItem View recommended items
Key Horizon # 47-197-1828 Description Wire Harness, Raypak RP2100, R185-R405, IID Price Qty RecItem View recommended items
Key Horizon # 47-197-1850 Description Wire Harness, Raypak R185A/R185B, MV Price Qty RecItem View recommended items

Pilot

Key Horizon # Description Qty
Key 1p Horizon # 47-197-1242 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, Nat., MV Price Qty RecItem View recommended items
Key 1p Horizon # 47-197-1244 Description Pilot, Raypak 53/53A/55A/105A/151/153/155A/183A, LP, MV Price Qty RecItem View recommended items
Key 3p Horizon # 47-197-1306 Description Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1246 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, Nat., MV Price Qty RecItem View recommended items
Key 5p Horizon # 47-197-1248 Description Orifice, Raypak 53/53A/55A/105A/151/153/155A, LP, MV Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1308 Description Pilot Orifice, Raypak 53A/55A/105A/151/153/155A/183A, IID Price Qty RecItem View recommended items
Key 7p Horizon # 47-197-1386 Description Pilot Orifice, Raypak 55A/105A/155A/185A/R185/185/206A, IID Price Qty RecItem View recommended items
Key 9p Horizon # 47-197-1250 Description Thermocouple, Raypak 53/53A/55A/105A/151/153/155A, MV Price Qty RecItem View recommended items
Key 12p Horizon # 47-197-1388 Description Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock Price Qty RecItem View recommended items
Key 12p Horizon # 47-197-1390 Description Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock Price Qty RecItem View recommended items
Key 13P Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100 Price Qty RecItem View recommended items
Key 13P Horizon # 47-197-3628 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100 Price Qty RecItem
Key 14P Horizon # Discontinued Description Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem View recommended items
Key 14P Horizon # 47-197-3232 Description Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID Price Qty RecItem
Key 15p Horizon # 47-197-1636 Description Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B Price Qty RecItem View recommended items
Key 16p Horizon # 47-197-1318 Description Pilot Tube Assembly, Raypak 53A/55A/105A/155A/185A/R185/185 Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1400 Description High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 Price Qty RecItem View recommended items
Key 17p Horizon # 47-197-1564 Description Electrode,Raypak 55A/155A/R185/185,IID,w/High Tension Wire Price Qty RecItem
Key 18p Horizon # 47-197-1642 Description Pilot Shield, Raypak R185/185/R185A/R185B Price Qty RecItem View recommended items
