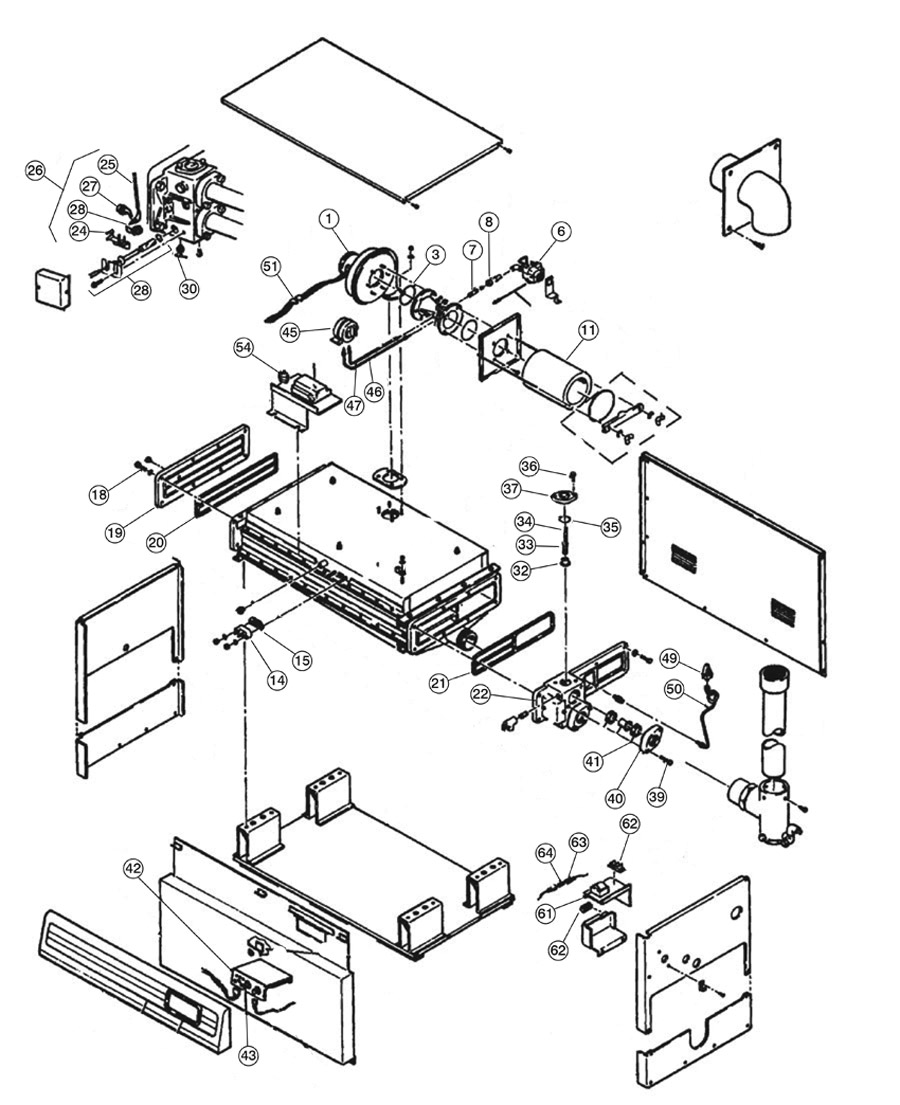

Waterpik Laars HI-E Model EPH Heater (Mfg 1991-96)

Product Description  ·  Gas System  ·  Water System  ·  Electrical System
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Gas System

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Fan Assembly, Zodiac Laars HI-E Price Qty RecItem
Key 3 Horizon # 90-423-5341 Description O-Ring, 3-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # 47-295-1206 Description Gas Valve, Zodiac Laars HI-E/HI-E2 Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Nipple, Zodiac Laars HI-E, Gas Orifice Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Orifice, Zodiac Laars HI-E, Nat. Price Qty RecItem
Key 8 Horizon # Discontinued Description Orifice, Zodiac Laars HI-E, LP Price Qty RecItem
Key 11 Horizon # Discontinued Description Air Filter, Zodiac Laars HI-E Model EPH Price Qty RecItem
Key 14 Horizon # Discontinued Description Igniter, Zodiac Laars HI-E/HI-E2 Price Qty RecItem View recommended items
Key 15 Horizon # 47-295-1218 Description Gasket, Zodiac Laars HI-E/HI-E2, Igniter Price Qty RecItem View recommended items

Water System

Key Horizon # Description Qty
Key 18 Horizon # Discontinued Description Bolt, Zodiac Laars HI-E, with Washer, Header Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Return Header, Zodiac Laars HI-E, Bronze Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Gasket, Zodiac Laars HI-E, Return Header Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Gasket, Zodiac Laars HI-E, Header Price Qty RecItem
Key 22 Horizon # Discontinued Description Inlet/Outlet Header, Zodiac Laars HI-E Price Qty RecItem
Key 24 Horizon # Discontinued Description Hi-Limit Retainer, Zodiac Laars HI-E Price Qty RecItem
Key 25 Horizon # Discontinued Description Hi Limit Harness, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 26 Horizon # 47-295-1266 Description HI-Limit Assembly, Zodiac Jandy Laars HI-E/Lite/Lite2 Price Qty RecItem View recommended items
Key 27 Horizon # 47-295-1268 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 135degF Price Qty RecItem View recommended items
Key 28 Horizon # 47-295-1270 Description Hi-Limit, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E, 150degF Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Temperature Sensor Assembly, Zodiac Laars HI-E Price Qty RecItem
Key 30 Horizon # 47-295-1624 Description Brass Plug, Zodiac Jandy Laars EPC/ESC/ESG/EPH/Lite, 1/4"mpt Price Qty RecItem View recommended items
Key 32 Horizon # 47-295-1276 Description Bypass Valve, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E/HI-E2 Price Qty RecItem View recommended items
Key 33 Horizon # Discontinued Description Bypass Spring, Zodiac Laars HI-E, Green Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Bypass Rod, Zodiac Laars HI-E, with Nut Price Qty RecItem View recommended items
Key 35 Horizon # 47-295-1282 Description Gasket, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E,Bypass Valve Price Qty RecItem View recommended items
Key 36 Horizon # Discontinued Description Bypass Bolt, Zodiac Laars HI-E, with Washer Price Qty RecItem View recommended items
Key 37 Horizon # Discontinued Description Bypass Valve Assy, Zodiac Jandy Laars ESC/HI-E/HI-E2/Lite2 Price Qty RecItem View recommended items
Key 39 Horizon # Discontinued Description Flange Bolt Kit, Zodiac Laars EPH Price Qty RecItem
Key 40 Horizon # 47-295-1200 Description Flange, Zodiac Jandy Laars EPC/ESC/EPG/ESG/EPH/HI-E2, 2" Price Qty RecItem View recommended items
Key 41 Horizon # 47-295-1292 Description Flange Sleeve, Zodiac Jandy Laars EPC/ESC/EPG/ESG/HI-E/HI-E2 Price Qty RecItem View recommended items

Electrical System

Key Horizon # Description Qty
Key 42 Horizon # Discontinued Description Temperature Control Assembly, Zodiac Laars HI-E Price Qty RecItem
Key 42 Horizon # Discontinued Description Temperature Control, Zodiac Laars HI-E Price Qty RecItem
Key 43 Horizon # Discontinued Description Temp-Lok Knob, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 45 Horizon # Discontinued Description Venturi Pressure Switch, Zodiac Laars HI-E Price Qty RecItem
Key 46 Horizon # Discontinued Description Throat Tube, Zodiac Laars HI-E, Pressure Switch Price Qty RecItem View recommended items
Key 47 Horizon # Discontinued Description Filter Tube, Zodiac Laars HI-E, Pressure Switch Price Qty RecItem View recommended items
Key 49 Horizon # 47-319-1027 Description Pressure Switch 3064, 25A, Tecmark, 3/16"Comp, SPNO Price Qty RecItem View recommended items
Key 50 Horizon # Discontinued Description Siphon Loop Assembly, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 51 Horizon # Discontinued Description Pressure Switch Tube, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 54 Horizon # 47-295-1316 Description Fusable Link, Zodiac Jandy Laars EPC/ESC/EPG/ESG/EPH/LX-LT Price Qty RecItem View recommended items
Key 61 Horizon # 47-295-1318 Description Transformer, Zodiac Jandy Laars EPC/ESC/EPH/HI-E2/Lite/LX/LT Price Qty RecItem View recommended items
Key 62 Horizon # Discontinued Description Terminal Strip Assembly, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 63 Horizon # Discontinued Description Fuse Assembly, Zodiac Laars HI-E Price Qty RecItem View recommended items
Key 64 Horizon # Discontinued Description Fuse Kit, Zodiac Laars EPC/Hi-E/XE Price Qty RecItem
