Hayward SharkVAC Robotic In-Ground Pool Cleaner

Product Description · Parts · Not Shown · Complete Cleaner

Product Description

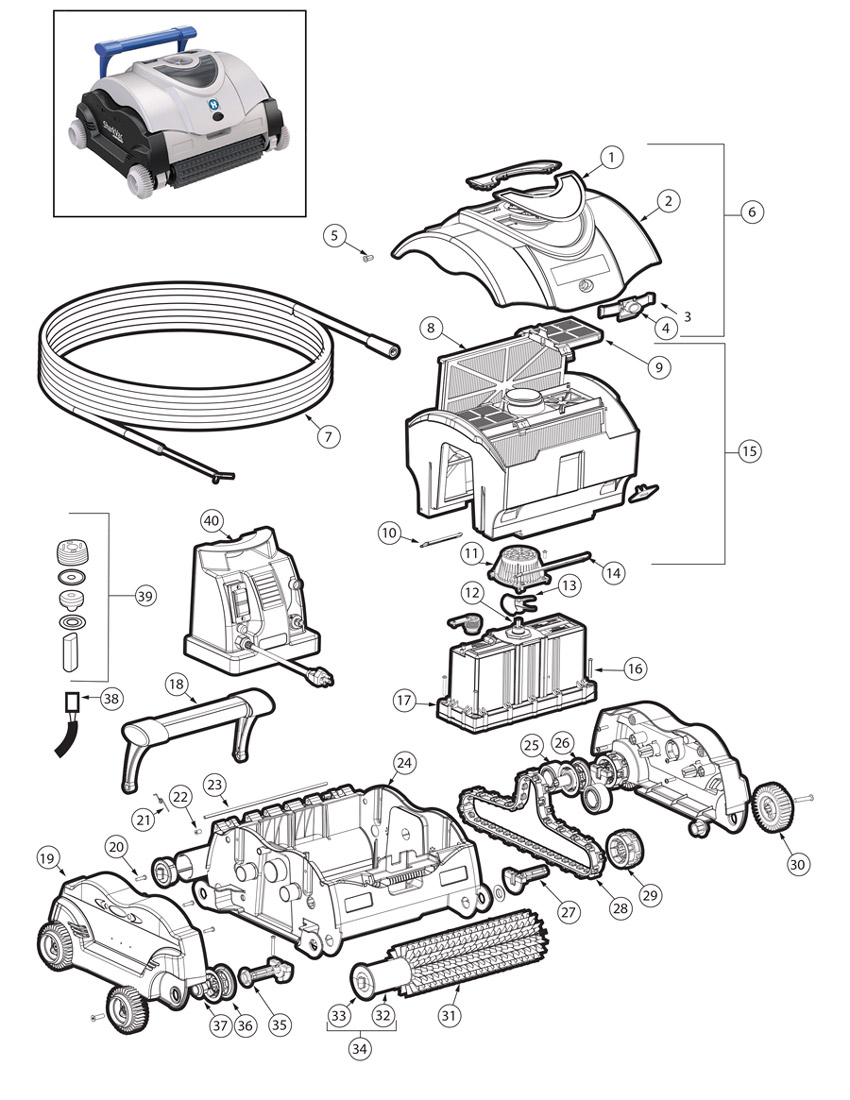

Key # 6 includes - keys 1, 2, 3, 4, and 5

Parts

Key	Horizon #	Description		Qty
Key 1	Horizon # 87-150-1500	Description Window, Dome Assembly, Hayward SharkVAC, Clear	Price	Qty	RecItem
Key 2	Horizon # 87-150-1501	Description Dome, Hayward SharkVAC, Gray	Price	Qty	RecItem
Key 4	Horizon # 87-150-1506	Description Power Button, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 5	Horizon # 87-150-1508	Description Bushing, Dome Assembly, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 6	Horizon # 87-150-1513	Description Dome Assembly, Hayward SharkVAC	Price	Qty	RecItem
Key 7	Horizon # 87-150-1540	Description Cord Assembly, Hayward SharkVAC, 50 foot	Price	Qty	RecItem
Key 8	Horizon # 87-150-1090	Description Filter Cartridge, Hayward TigerShark/SharkVAC/XL, Quantity 2	Price	Qty	RecItem
Key 9	Horizon # 87-150-1509	Description Door Filter Element, Hayward SharkVAC/XL, qty 2	Price	Qty	RecItem
Key 9	Horizon # 87-150-1512	Description Filter Door, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 10	Horizon # 87-150-1514	Description Drain Flap, Hayward SharkVAC/XL, Small	Price	Qty	RecItem
Key 11	Horizon # 87-150-1544	Description Vent Tube, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 12	Horizon # 87-150-1574	Description Drive Pin Assembly, Hayward SharkVAC/XL/TigerShark	Price	Qty	RecItem
Key 13	Horizon # 87-150-1572	Description Impeller, Hayward SharkVAC/XL/TigerShark	Price	Qty	RecItem
Key 14	Horizon # 87-150-1516	Description Drain Flap, Hayward SharkVAC/XL, Large	Price	Qty	RecItem
Key 15	Horizon # 87-150-1592	Description Filter Bucket Assembly, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 16	Horizon # 87-150-1552	Description Screw, Motor Mount, Hayward SV/SVXL, M5x35mm, Pan, qty 5	Price	Qty	RecItem
Key 17	Horizon # 87-150-1542	Description Motor, Hayward SharkVAC	Price	Qty	RecItem
Key 18	Horizon # 87-150-1573	Description Handle Assembly, Hayward SharkVAC, Blue	Price	Qty	RecItem
Key 19	Horizon # 87-150-1575	Description Side Panel, Hayward SharkVAC, Black	Price	Qty	RecItem
Key 20	Horizon # 87-150-1588	Description Screw,Handle Assy,Hayward SV/SVXL/TS,M5x20mm T-20,Pan,qty 5	Price	Qty	RecItem
Key 21	Horizon # 87-150-1538	Description Spring, Handle, Hayward SharkVAC/XL	Price	Qty	RecItem
Key 22	Horizon # Discontinued	Description Screw, Shaft Hinge,Hayward SharkVAC/XL,M7x10mm,Flat,qty 5	Price	Qty	RecItem
Key 23	Horizon # 87-150-1568	Description Shaft Hinge, Hayward SharkVAC/XL, Stainless Steel	Price	Qty	RecItem
Key 24	Horizon # 87-150-1577	Description Base, Hayward SharkVAC/XL, Black	Price	Qty	RecItem
Key 25	Horizon # 87-150-1082	Description Bearing Idler Pulley, Hayward TigerShark/SharkVAC/XL, qty 2	Price	Qty	RecItem
Key 26	Horizon # 87-150-1688	Description Drive Bearing Assembly, Hayward SharkVAC XL	Price	Qty	RecItem
Key 27	Horizon # 87-150-1566	Description Roller Wheel Shaft, Hayward AquaVac 500, qty 2	Price	Qty	RecItem
Key 28	Horizon # 87-150-1686	Description Belt, Drive Track, Hayward SharkVAC XL	Price	Qty	RecItem
Key 29	Horizon # 87-150-1545	Description Drive Wheel Kit, Hayward AquaVac 500, qty 2	Price	Qty	RecItem
Key 30	Horizon # 87-150-1704	Description Over Molded Wheel Assembly, Hayward SharkVAC XL	Price	Qty	RecItem
Key 31	Horizon # 87-150-1088	Description Roller Brush, Hayward TigerShark/SharkVAC/XL	Price	Qty	RecItem
Key 32	Horizon # 87-150-1571	Description Wheel Tube, Hayward SharkVAC/XL, Black	Price	Qty	RecItem
Key 33	Horizon # 87-150-1530	Description Roller End, Hayward SharkVAC, Wheel Assembly	Price	Qty	RecItem
Key 34	Horizon # 87-150-1594	Description Wheel Tube Assembly, Hayward SharkVAC/XL, Light Gray	Price	Qty	RecItem
Key 35	Horizon # 87-150-1519	Description Roller Shaft Bushing, Hayward AquaVac/SharkVAC/XL, blk Qty 2	Price	Qty	RecItem
Key 36	Horizon # Discontinued	Description Drive Belt Wheel, Hayward SharkVAC XL	Price	Qty	RecItem
Key 37	Horizon # 87-150-1549	Description Roller Bushing Kit, Hayward AquaVac 500, qty 2	Price	Qty	RecItem
Key 38	Horizon # 87-150-1586	Description Pin, Female,AMP,14-20AWG,Hayward SharkVAC/XL/TigerShark,1ea	Price	Qty	RecItem
Key 39	Horizon # 87-150-1533	Description Motor Cord Seal Kit, Hayward AquaVac 500	Price	Qty	RecItem
Key 40	Horizon # 87-150-1554	Description Power Supply, Hayward SharkVAC/XL/TigerShark,115v,w/5ft Cord	Price	Qty	RecItem

Not Shown

Key	Horizon #	Description		Qty
Key	Horizon # _RC97385D	Description Cart Caddy N/Assy, Sv/Ev	Price	Qty	RecItem
Key	Horizon # 87-150-1556	Description Power Supply Circuit Breaker, Hayward SharkVAC/XL/TS, 3A	Price	Qty	RecItem
Key	Horizon # 87-150-1558	Description Switch, Power Supply, Hayward SharkVAC/XL/TigerShark, 16A	Price	Qty	RecItem
Key	Horizon # 87-150-1560	Description Membrane Cover, Hayward SV/SVXL/TS, Power Supply Switch	Price	Qty	RecItem
Key	Horizon # 87-150-1562	Description Power Supply Output Connecter,Hayward SharkVAC/XL/TigerShark	Price	Qty	RecItem
Key	Horizon # 87-150-1598	Description Spring Clean Up Filter, Hayward SharkVAC/TigerShark, qty 2	Price	Qty	RecItem

Complete Cleaner

Key	Horizon #	Description			Qty
Key	Horizon # 86-150-1020E	Description Pool Cleaner, Hayward SharkVac, 115V, Open Line		Price	Qty	RecItem
Key	Horizon # 86-150-1022E	Description Pool Cleaner, Hayward SharkVac, 115V, w/Caddy Cart,Open Line		Price	Qty	RecItem
