Home  >  Diving Boards  >  Diving Boards and Parts

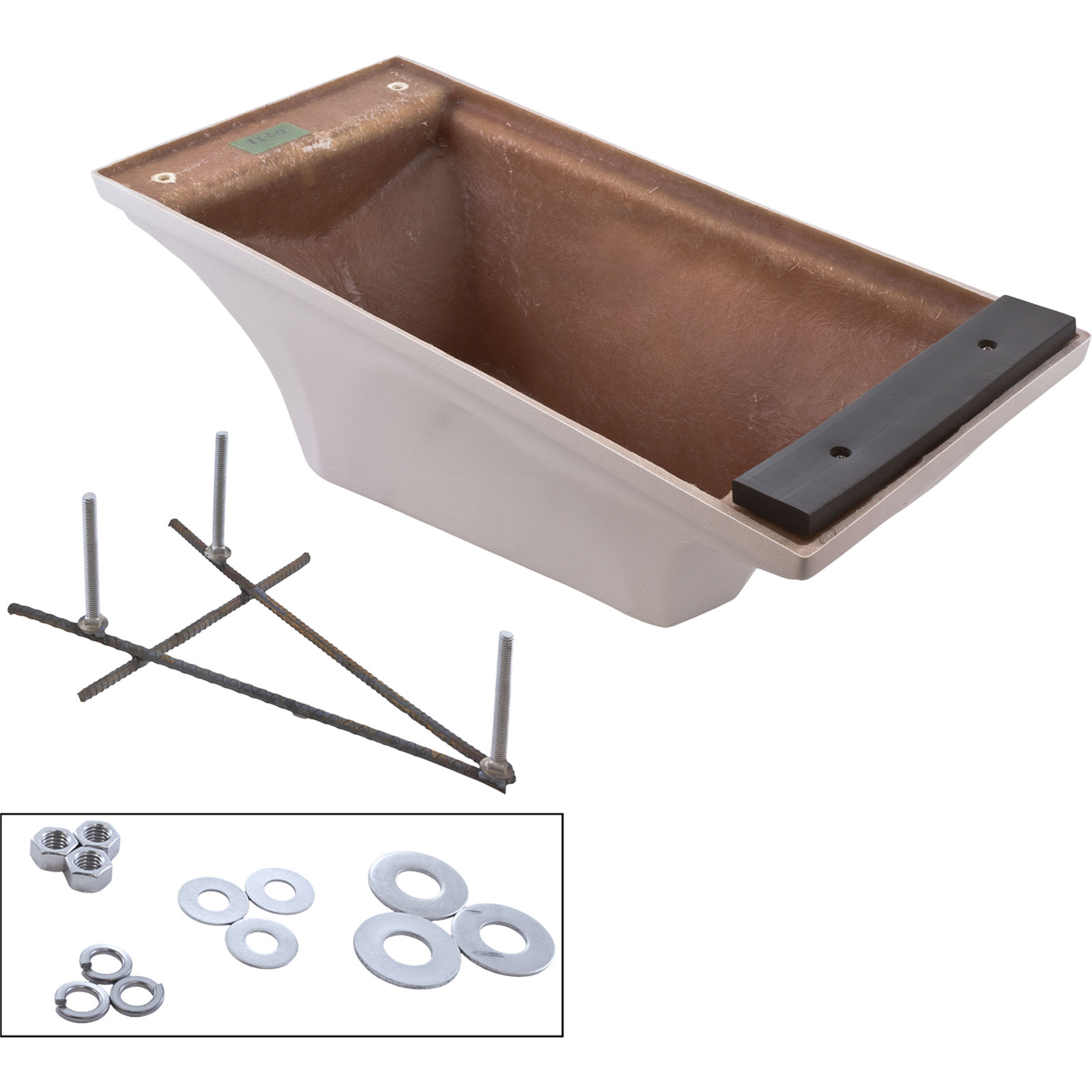

Stand, Inter-Fab La Mesa, Fiberglass, 6ft, w/Jig, Hardware, Wht

Stand,Inter-Fab La Mesa, Fiberglass,6ft, w/Jig, Hardware,Wht 63-725-1076

Multiple Views:

main boltkit jig jig-dimensions side-view top-view

Discontinued

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

X Cart Updated


Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.


Detailed Product Info

Back To Top ^

Before Proceeding: If you are working on a gunite pool, please see the Documentation tab and download the ANSI Dive Board Gunite Pool Requirements file to determine if the pool is suitable for a diving board, even if there is an existing diving board. If you are working on a vinyl liner pool please call Inter-fab customer service at 1-800-737-5386 for help in determining the pool type.

Note: A 6ft board must only be mounted on a 6ft base and an 8ft board must only be mounted on an 8ft base. Because it is possible to mount mismatched components, please be sure to check all dimensions to ensure that the right parts are ordered. This will help prevent creating an unsafe installation. See Tech Tips tab for compatible diving boards.

Note: All metal surfaces within 5ft of waters edge must be bonded. Be sure to comply with all local electrical codes.

  • 3 Year Limited Warranty
  • Passive Base - Spring Feature is Derived from Board
  • Durable and Long Lasting Acrylic and Fiberglass Construction
  • 250lb Weight Limit
  • Includes jig and base to jig mounting hardware.
Horizon #Description Exploded Diagram
Horizon # 63-725-W001 Product Dive Base System, Inter-Fab, La Mesa   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # Discontinued Product Stand,Inter-Fab La Mesa, Fiberglass,6ft, w/Jig, Hardware,Wht Price Qty List Order
Horizon # Discontinued Product Stand,Inter-Fab La Mesa, Fiberglass,8ft, w/Jig, Hardware,Wht Price Qty List Order
Search Using These Specs
Dive System Application La Mesa
Model La Mesa
Model Number LAM6
Dive System Part Type Jump Stand
Dive Board Length 6ft
Color White
Manufacturer Inter-fab

Looking for the description, tech tips, exploded diagram, available styles, documentation, specifications, kit components, and other information? Log in now to access to all this information and more!
